Use the same connection, firmware and profile when repeating a check. These measurements describe browser input and do not assign a hardware health score.
Choose a guided measurement.
Trigger Travel · Last 6 Seconds
Slowly squeeze and release each trigger. A digital or instant-trigger mode can jump directly between endpoints.
— Left trigger– – Right trigger
Observed Press / Release Counts
↓ Presses · ↑ Releases. Counts start at observed state transitions; a control already held when sampling begins has no recorded press. Brief events between browser samples can be missed.
How to read these measurements
The guided sweep records the greatest radius in each of 32 direction sectors. A direction counts as covered at radius 0.75. Outline deviation is the mean absolute difference from radius 1, shown only after all directions are covered. An intended square response can have higher deviation.
Centring records four releases per stick: left, right, up and down. After input returns below radius 0.5, it settles for 0.4 seconds and averages the following 0.4 seconds, with at least five samples. Position spread is the greatest distance from the average of those four positions. Filtering can affect all results. This is not a latency or hardware polling-rate test.
Connect a controller to check browser rumble support.
Did you feel the vibration?
Resting-Stick Measurement
This describes the input exposed by your browser. Firmware and remapping software can already apply deadzones. These readings do not certify hardware condition.
Raw readings & input history
Indices are shown as reported by the browser. Unknown layouts are not assigned stick or trigger names.
Waiting for controller input.
GUIDED CHECKUP
Check Every Control.
Step 1 of 5
Buttons
Triggers
Stick drift
Stick range
Results
Connect a controller to begin.
Save, export or compare this session
KEEP YOUR BASELINE
Save Or Export This Session
Stored on this device
Snapshots stay in this browser. Export a report before clearing site data or moving to another device.
Saved snapshots & comparison 0
Choose two records to compare. Imported files are checked locally and never uploaded.
By EmuCores · Setup guide · Updated 30 October 2026
Connect Your GuliKit Controller
Choose the PC input mode supported by the exact KK model. GuliKit’s configuration tool documents supported models and a PC XInput connection for configuration.
A multi-platform controller can expose different layouts in different modes. Record the selected mode and connection before comparing the browser values.
Confirm the controller’s platform mode and supported connection. Use a USB data cable or the receiver specified for that exact model.
Focus this page, press a face button and choose the responding device from the connected-controller menu.
Press and release each control. Check raw indices if the device has no standard mapping.
Record your connection, software profile and trigger-stop setting before saving a snapshot.
Model setup at a glance — PC connection guidance
Model
Connection to check
Setup / interpretation
KK3 Max
USB / Receiver
Check analog/digital trigger-switch positions before judging whether intermediate trigger values should appear. Manufacturer guidance

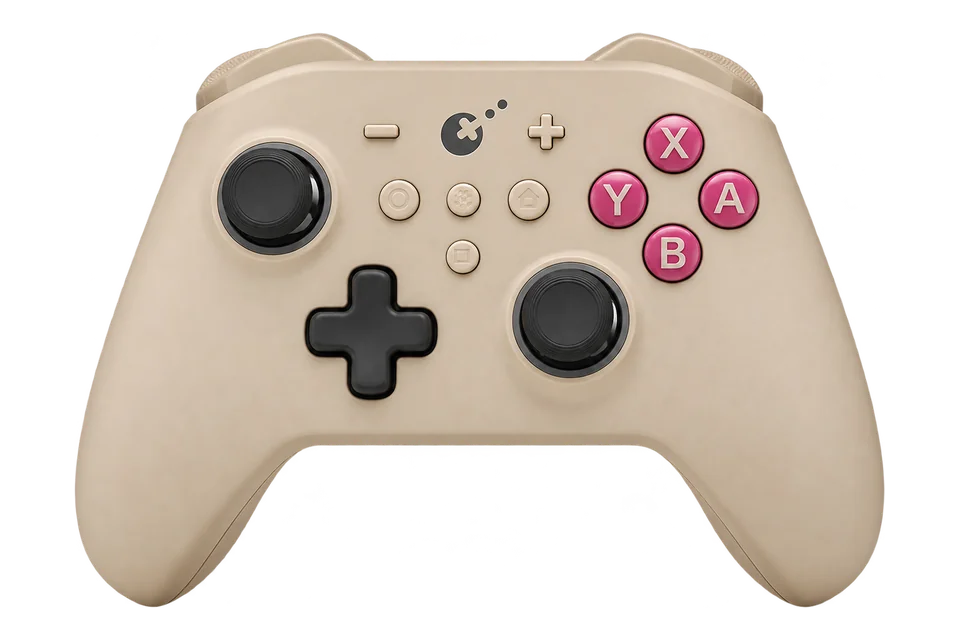

KK3 Pro
USB / Receiver
Use its supported PC mode and document configuration settings before comparing browser readings. Manufacturer guidance
Connections vary by edition and operating system. This table records setup guidance, not a physically verified browser result.
MODEL NOTES
Choose Your GuliKit
ControllerTester illustration
GuliKit

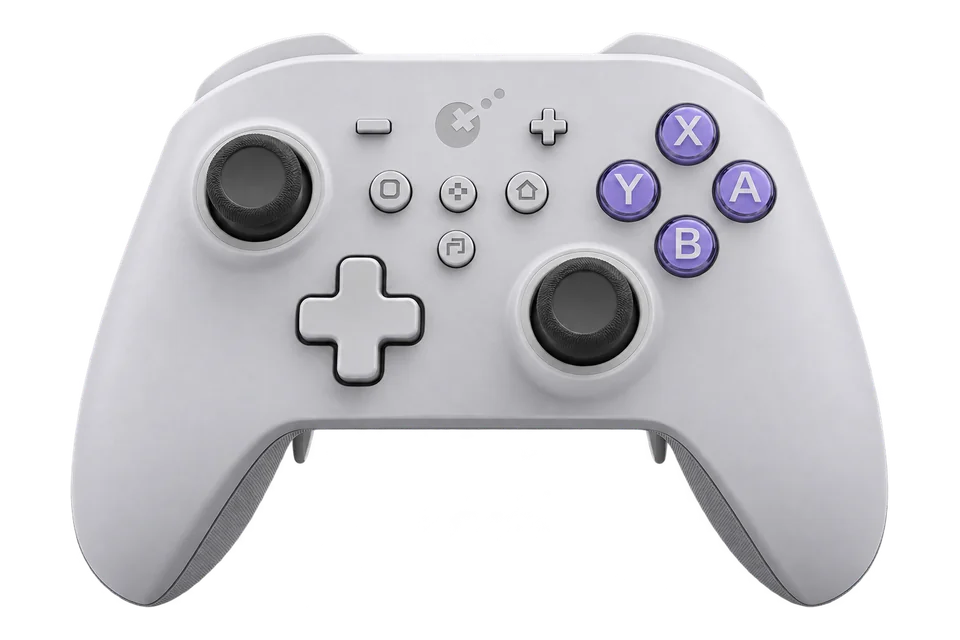

KK3 Max
USB · Receiver
KK3 Max combines magnetic sticks and triggers with four removable rear paddles. Its analog/digital trigger switch changes the expected readings.
Specifications & testing tips
Platforms
PC / Switch
PC connections
USB / Receiver
Configuration
GuliKit configuration tool
Stick technology
Hall effect
Triggers
Hall effect; analog / digital switch
Extra controls
Four rear paddle positions
Feedback
Maglev vibration motors
Before You Test
Check analog/digital trigger-switch positions before judging whether intermediate trigger values should appear.
Start with the normal manufacturer-supported PC connection. Record firmware, connection and profile before saving a snapshot.
What To Check Here
Press each face button and direction once. Use the raw input list if the browser has no standard mapping.
Move the sticks around their range, release them and run the resting-stick test. Save the active profile alongside the results.
Squeeze and release both triggers. A short-travel or digital mode can change the values you observe.
Rear buttons can repeat existing inputs. Browser rumble does not test motion sensors, audio or adaptive-trigger resistance.
Illustration reference: Model appearance reference. AI-generated illustration based on the model reference; small details and colour may vary. Colour and included accessories may vary.
Illustration reference: Model appearance reference. AI-generated illustration based on the model reference; small details and colour may vary. Colour and included accessories may vary.
KK3 Max provides an analog/digital trigger switch. Digital mode can jump from released to pressed with little or no intermediate value; that is different from a long analog sweep.
Sensor technology does not remove the need to check calibration, firmware and profile settings. A zero centre reading may include filtering before the input reaches the browser.
Keep rear assignments, trigger mode and stick settings in your setup note. Use the manufacturer’s exact-model calibration instructions if needed; this website does not write calibration to the controller.
Turn A Reading Into A Useful Comparison
Check one variable at a time. For unwanted stick movement, release the sticks onto a stable surface and run the ten-second resting test. For a missing action, compare a direct button press with its rear-button assignment. Save a note identifying the active profile so a later result can be reproduced.
The browser-reported device name can describe a virtual gamepad. The optional model reference is your selection, not automatic hardware identification. Brand listing does not guarantee vibration, independent paddles or vendor-specific controls in your browser.
No. KK3 Max has analog/digital trigger modes. In digital mode, a quick transition to full input can be intentional.
Can this website calibrate my KK3?
It records browser input and does not write calibration to hardware. Use GuliKit’s exact-model instructions, then return to repeat the same measurements.
Documentation reviewed 29 October 2026. Setup guidance, not a hands-on product review or a certification of browser support.
