Use the same connection, firmware and profile when repeating a check. These measurements describe browser input and do not assign a hardware health score.
Choose a guided measurement.
Trigger Travel · Last 6 Seconds
Slowly squeeze and release each trigger. A digital or instant-trigger mode can jump directly between endpoints.
— Left trigger– – Right trigger
Observed Press / Release Counts
↓ Presses · ↑ Releases. Counts start at observed state transitions; a control already held when sampling begins has no recorded press. Brief events between browser samples can be missed.
How to read these measurements
The guided sweep records the greatest radius in each of 32 direction sectors. A direction counts as covered at radius 0.75. Outline deviation is the mean absolute difference from radius 1, shown only after all directions are covered. An intended square response can have higher deviation.
Centring records four releases per stick: left, right, up and down. After input returns below radius 0.5, it settles for 0.4 seconds and averages the following 0.4 seconds, with at least five samples. Position spread is the greatest distance from the average of those four positions. Filtering can affect all results. This is not a latency or hardware polling-rate test.
Connect a controller to check browser rumble support.
Did you feel the vibration?
Resting-Stick Measurement
This describes the input exposed by your browser. Firmware and remapping software can already apply deadzones. These readings do not certify hardware condition.
Raw readings & input history
Indices are shown as reported by the browser. Unknown layouts are not assigned stick or trigger names.
Waiting for controller input.
GUIDED CHECKUP
Check Every Control.
Step 1 of 5
Buttons
Triggers
Stick drift
Stick range
Results
Connect a controller to begin.
Save, export or compare this session
KEEP YOUR BASELINE
Save Or Export This Session
Stored on this device
Snapshots stay in this browser. Export a report before clearing site data or moving to another device.
Saved snapshots & comparison 0
Choose two records to compare. Imported files are checked locally and never uploaded.
By EmuCores · Setup guide · Updated 30 October 2026
Connect Your Victrix / PDP Controller
Start by identifying the platform edition. The original PlayStation Pro BFG has PS5, PS4 and PC modes; the Xbox version uses different mode instructions. Reloaded also has distinct PlayStation, Xbox and PC editions.
Select a supported wired USB connection or the supplied wireless transmitter. Record the fitted stick/button modules and trigger stops before testing, because a fightpad arrangement differs from a conventional two-stick layout.
Confirm the controller’s platform mode and supported connection. Use a USB data cable or the receiver specified for that exact model.
Focus this page, press a face button and choose the responding device from the connected-controller menu.
Press and release each control. Check raw indices if the device has no standard mapping.
Record your connection, software profile and trigger-stop setting before saving a snapshot.
Model setup at a glance — PC connection guidance
Model
Connection to check
Setup / interpretation
Pro BFG — PlayStation
USB / Receiver
PC mode uses XInput and disables touchpad/headset features. Check the PS5/PS4/PC switch. Manufacturer guidance
Pro BFG — Xbox
USB / Receiver
Use the Xbox edition’s manual, not the PlayStation switch instructions. Record your module arrangement. Manufacturer guidance
Pro BFG Reloaded — PlayStation
USB / Receiver
Check platform mode, USB or receiver connection, fitted modules and Control Hub profile. Manufacturer guidance
Pro BFG Reloaded — Xbox
USB / Receiver
Use the Xbox edition’s supported PC connection. Note trigger and deadzone adjustments. Manufacturer guidance
Pro BFG Reloaded — PC Edition
USB / Receiver
Keyboard/mouse rear assignments may not generate extra gamepad button events. Record the chosen assignment. Manufacturer guidance
Gambit Prime
USB
Wired Xbox/PC model. Note the paddle arrangement, trigger stops and gate fitted during the test. Manufacturer guidance
Connections vary by edition and operating system. This table records setup guidance, not a physically verified browser result.
MODEL NOTES
Choose Your Victrix / PDP
ControllerTester illustration
Victrix / PDP
Pro BFG — PlayStation
USB · Receiver

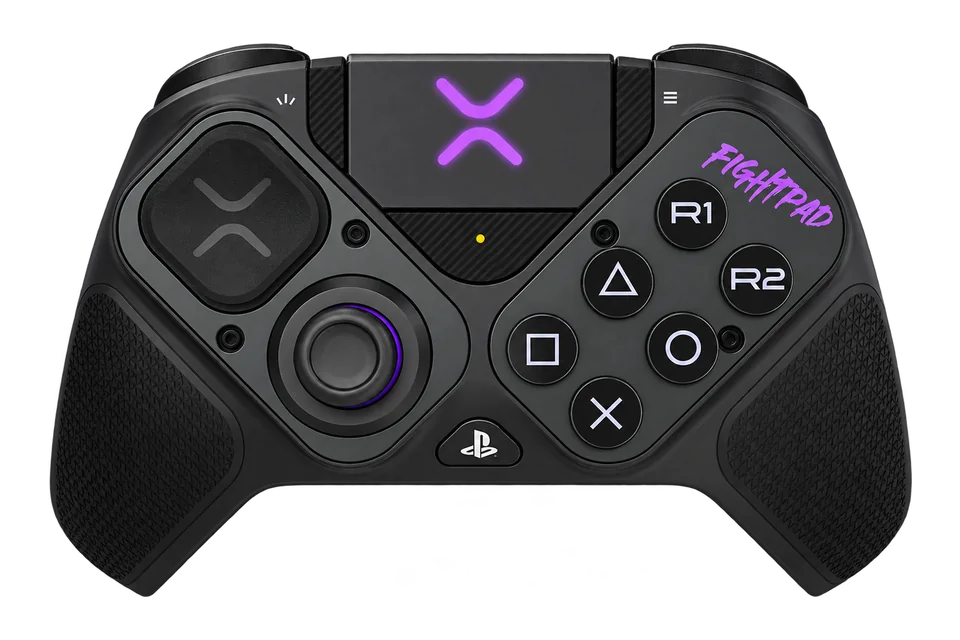

The original PlayStation Pro BFG has swappable control modules and a PS5 / PS4 / PC mode switch. Its PC mode changes touchpad and headset availability.
Specifications & testing tips
Platforms
PC / PS5 / PS4
PC connections
USB / Receiver
Configuration
Victrix Control Hub, edition varies
Modules
Reversible left module and interchangeable right controls
PC mode
XInput; original model does not expose touchpad or headset functions in this mode
Edition
Original Pro BFG; distinct from Reloaded
Before You Test
PC mode uses XInput and disables touchpad/headset features. Check the PS5/PS4/PC switch.
Note the installed modules and trigger stops. If you rearrange a module, follow the manufacturer’s calibration instructions before recording a new baseline.
What To Check Here
Press each face button and direction once. Use the raw input list if the browser has no standard mapping.
Move the sticks around their range, release them and run the resting-stick test. Save the active profile alongside the results.
Squeeze and release both triggers. A short-travel or digital mode can change the values you observe.
Rear buttons can repeat existing inputs. Browser rumble does not test motion sensors, audio or adaptive-trigger resistance.
Illustration reference: Model appearance reference. AI-generated illustration based on the model reference; small details and colour may vary. Colour and included accessories may vary.

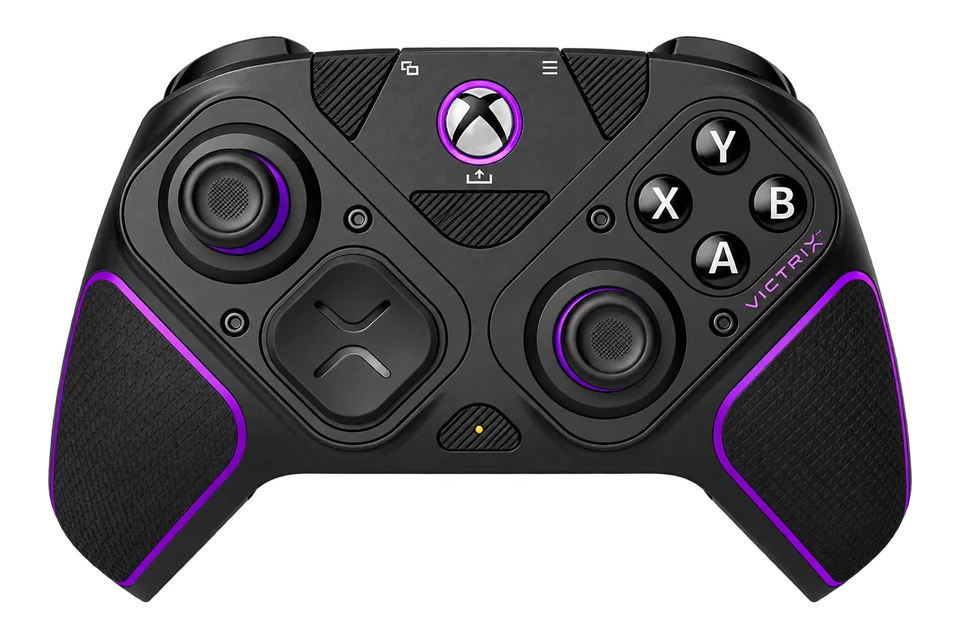

The Xbox Pro BFG is a separate licensed edition with modular controls. Match its firmware and connection instructions to the Xbox model.
Specifications & testing tips
Platforms
PC / Xbox
PC connections
USB / Receiver
Configuration
Victrix Control Hub, edition varies
Modules
Interchangeable control modules
Edition
Original Xbox model; distinct from PlayStation and Reloaded
Before You Test
Use the Xbox edition’s manual, not the PlayStation switch instructions. Record your module arrangement.
Note the installed modules and trigger stops. If you rearrange a module, follow the manufacturer’s calibration instructions before recording a new baseline.
What To Check Here
Press each face button and direction once. Use the raw input list if the browser has no standard mapping.
Move the sticks around their range, release them and run the resting-stick test. Save the active profile alongside the results.
Squeeze and release both triggers. A short-travel or digital mode can change the values you observe.
Rear buttons can repeat existing inputs. Browser rumble does not test motion sensors, audio or adaptive-trigger resistance.
Illustration reference: Model appearance reference. AI-generated illustration based on the model reference; small details and colour may vary. Colour and included accessories may vary.

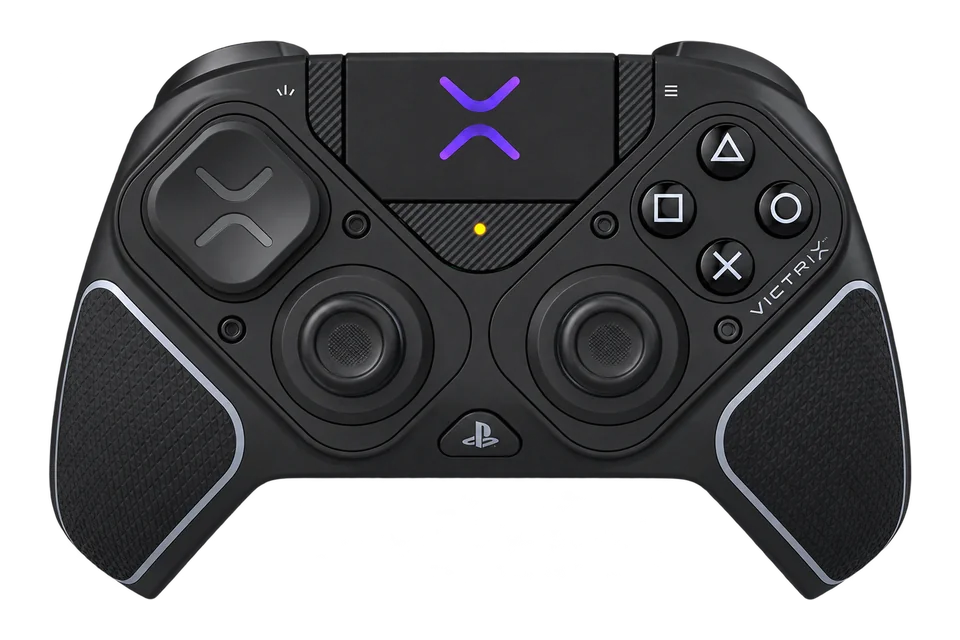

Reloaded updates the modular PlayStation Pro BFG with Hall-effect sensing and a revised fighting-game module.
Specifications & testing tips
Platforms
PC / PS5 / PS4
PC connections
USB / Receiver
Configuration
Victrix Control Hub, edition varies
Stick technology
Hall effect
Triggers
Hall-effect; five-stop Clutch Triggers
Extra controls
Four mappable rear buttons
Modules
Reversible controls and six-button Fightpad module
Before You Test
Check platform mode, USB or receiver connection, fitted modules and Control Hub profile.
Note the installed modules and trigger stops. If you rearrange a module, follow the manufacturer’s calibration instructions before recording a new baseline.
What To Check Here
Press each face button and direction once. Use the raw input list if the browser has no standard mapping.
Move the sticks around their range, release them and run the resting-stick test. Save the active profile alongside the results.
Squeeze and release both triggers. A short-travel or digital mode can change the values you observe.
Rear buttons can repeat existing inputs. Browser rumble does not test motion sensors, audio or adaptive-trigger resistance.
Illustration reference: Model appearance reference. AI-generated illustration based on the model reference; small details and colour may vary. Colour and included accessories may vary.

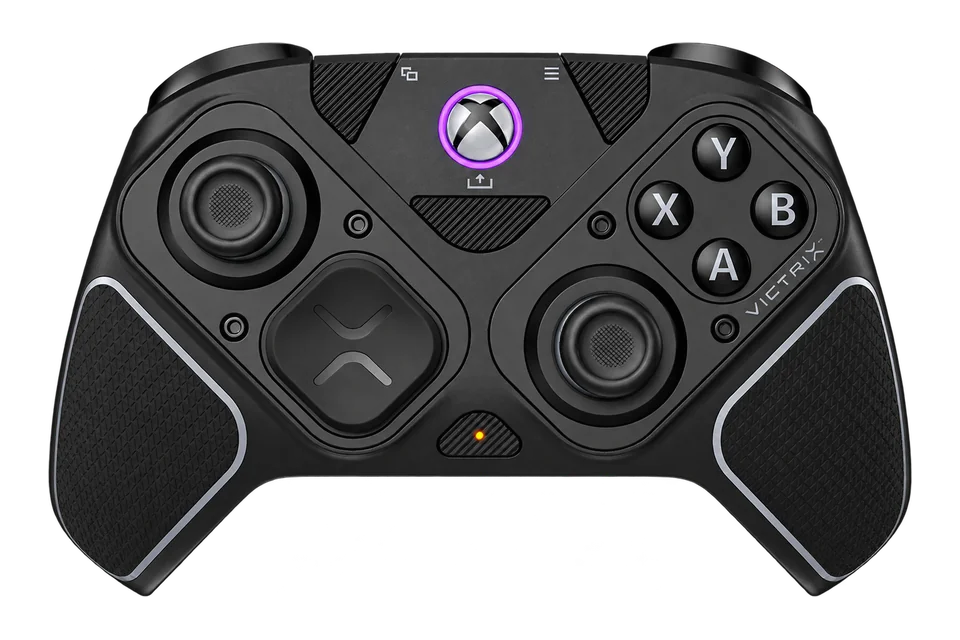

The Xbox Reloaded model combines Hall-effect controls, rear buttons and swappable modules in its own Xbox-compatible edition.
Specifications & testing tips
Platforms
PC / Xbox
PC connections
USB / Receiver
Configuration
Victrix Control Hub, edition varies
Stick technology
Hall effect
Triggers
Hall-effect; five-stop Clutch Triggers
Extra controls
Four mappable rear buttons
Modules
Reversible controls and six-button Fightpad module
Before You Test
Use the Xbox edition’s supported PC connection. Note trigger and deadzone adjustments.
Note the installed modules and trigger stops. If you rearrange a module, follow the manufacturer’s calibration instructions before recording a new baseline.
What To Check Here
Press each face button and direction once. Use the raw input list if the browser has no standard mapping.
Move the sticks around their range, release them and run the resting-stick test. Save the active profile alongside the results.
Squeeze and release both triggers. A short-travel or digital mode can change the values you observe.
Rear buttons can repeat existing inputs. Browser rumble does not test motion sensors, audio or adaptive-trigger resistance.
Illustration reference: Model appearance reference. AI-generated illustration based on the model reference; small details and colour may vary. Colour and included accessories may vary.

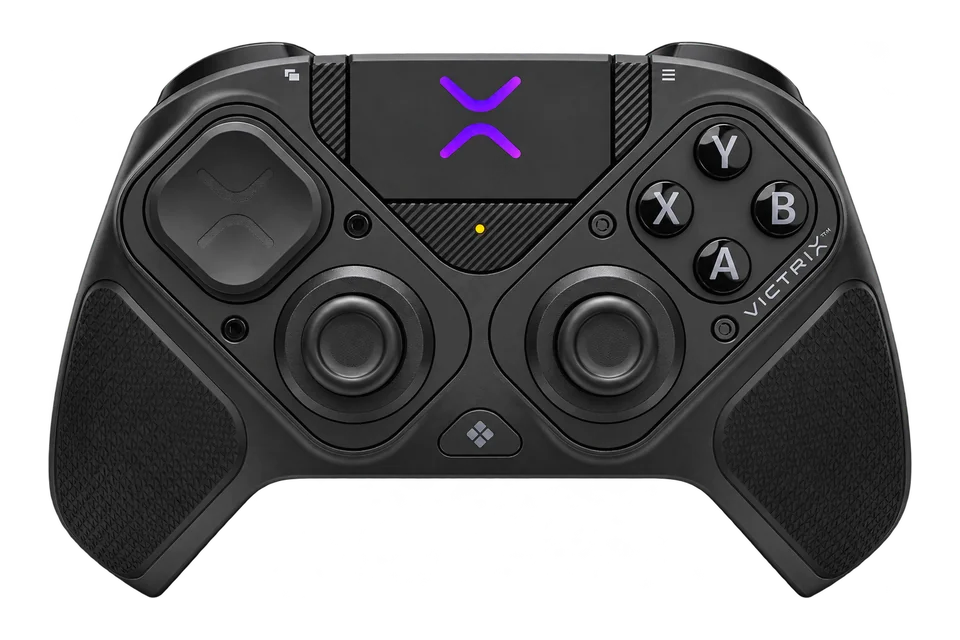

The PC Edition adds PC-specific control options to the Reloaded format. Keyboard, mouse and trackpad actions do not all become gamepad indices.
Specifications & testing tips
Platforms
PC
PC connections
USB / Receiver
Configuration
Victrix Control Hub, edition varies
Stick technology
Hall effect
Modules
Interchangeable controller modules
PC controls
Trackpad, keyboard and mouse emulation; check Control Hub
Before You Test
Keyboard/mouse rear assignments may not generate extra gamepad button events. Record the chosen assignment.
Note the installed modules and trigger stops. If you rearrange a module, follow the manufacturer’s calibration instructions before recording a new baseline.
What To Check Here
Press each face button and direction once. Use the raw input list if the browser has no standard mapping.
Move the sticks around their range, release them and run the resting-stick test. Save the active profile alongside the results.
Squeeze and release both triggers. A short-travel or digital mode can change the values you observe.
Rear buttons can repeat existing inputs. Browser rumble does not test motion sensors, audio or adaptive-trigger resistance.
Illustration reference: Model appearance reference. AI-generated illustration based on the model reference; small details and colour may vary. Colour and included accessories may vary.

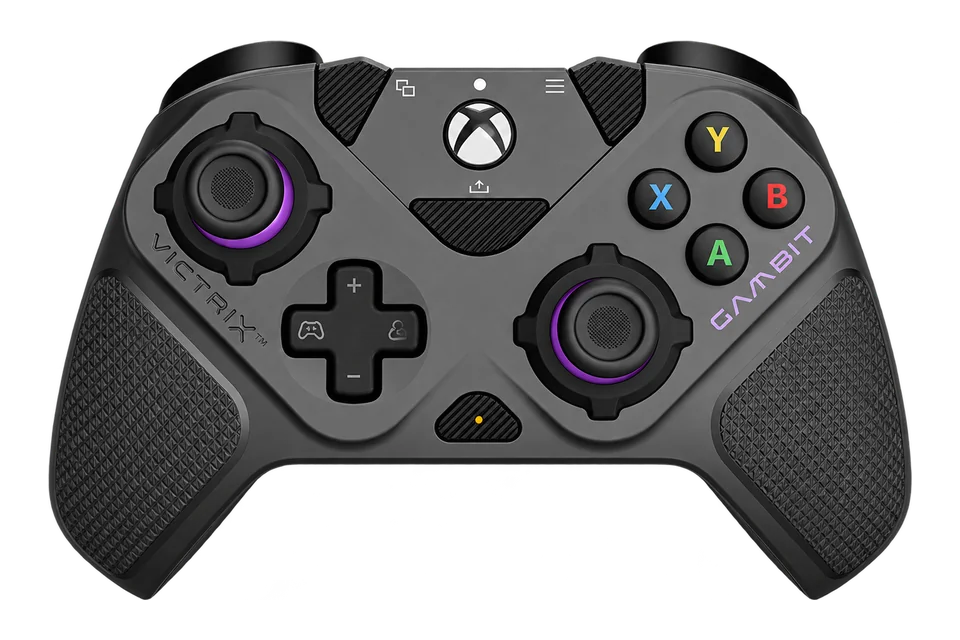

Gambit Prime is a wired Xbox and PC model. Note the rear-control configuration and the active trigger setting before a test.
Specifications & testing tips
Platforms
PC / Xbox
PC connections
USB
Configuration
Victrix Control Hub, edition varies
Connection
Wired USB
Software
Victrix Control Hub
Before You Test
Wired Xbox/PC model. Note the paddle arrangement, trigger stops and gate fitted during the test.
Note the installed modules and trigger stops. If you rearrange a module, follow the manufacturer’s calibration instructions before recording a new baseline.
What To Check Here
Press each face button and direction once. Use the raw input list if the browser has no standard mapping.
Move the sticks around their range, release them and run the resting-stick test. Save the active profile alongside the results.
Squeeze and release both triggers. A short-travel or digital mode can change the values you observe.
Rear buttons can repeat existing inputs. Browser rumble does not test motion sensors, audio or adaptive-trigger resistance.
Illustration reference: Model appearance reference. AI-generated illustration based on the model reference; small details and colour may vary. Colour and included accessories may vary.
On the original PlayStation Pro BFG, PC mode uses XInput and does not provide the touchpad or headset audio. A missing touchpad reading in that mode is therefore not evidence of a broken touchpad.
The Reloaded PC Edition allows rear assignments to gamepad, keyboard or mouse actions. A keyboard or mouse assignment may produce no additional gamepad button event. This is an interpretation of the assignment, not a diagnosis of the control.
Control Hub settings can affect remapping, deadzones and trigger behaviour. Save the profile name with each test. A different stick module, gate or trigger-stop position can explain a changed trace or travel range.
Turn A Reading Into A Useful Comparison
Check one variable at a time. For unwanted stick movement, release the sticks onto a stable surface and run the ten-second resting test. For a missing action, compare a direct button press with its rear-button assignment. Save a note identifying the active profile so a later result can be reproduced.
The browser-reported device name can describe a virtual gamepad. The optional model reference is your selection, not automatic hardware identification. Brand listing does not guarantee vibration, independent paddles or vendor-specific controls in your browser.
Why does the original PlayStation Pro BFG touchpad not work in PC mode?
The manufacturer documents XInput in PC mode and disables touchpad/headset functions in that mode. Use the exact edition’s manual: Xbox and Reloaded variants have their own instructions.
What should I record after swapping modules?
Record the module type, position, gate and trigger-stop settings. Save a snapshot before the change and repeat with the same software profile. A different physical arrangement can produce a different trace without being a fault.
Documentation reviewed 29 October 2026. Setup guidance, not a hands-on product review or a certification of browser support.
